Description
Products Specification
|
Charge Current
|
100A
|
Dishcarge Current
|
100A
|
||||
|
Charge Voltage
|
14.6V
|
Discharge Voltage
|
8.9V-12.8V
|
||||
|
Cycle Life
|
5000 Cycles
|
Warranty
|
5 Years
|
||||
|
Dimension
|
260*168*209mm
|
Weight
|
11.5KG
|
||||
|
Housing
|
ABS
|
Terminal
|
M8
|
||||
|
Optional
|
Bluetooth
|
LED Screen
|
Pre-heating
|
OEM label
|
|||
|
Advantage
|
High temp prot.
|
Low temp prot.
|
over charge prot.
|
over discharge prot.
|
|||
|
Certification
|
CE
|
MSDS
|
UN38.3
|
||||
|
Series and parallel
|
Max. allowed 4s4p parallel hook up for use
|
||||||
Specification
|
item
|
value
|
|
Warranty
|
5YEARS
|
|
Application
|
Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Solar Energy Storage Systems
|
|
Brand Name
|
LITHTECH
|
|
Certification
|
CE
|
|
Model Number
|
TE12100
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Weight
|
11.5KG
|
|
Capacity
|
100Ah
|
|
Cycle life
|
5000+
|
|
Dimension
|
260*168*209mm
|
|
Protection
|
BMS
|
|
Material
|
ABS plastic
|
|
Cell type
|
Prismatic
|
|
Terminal
|
M8
|
|
Configuration
|
4S1P
|
|
Color
|
Black
|
|
OEM/ODM
|
Acceptable
|

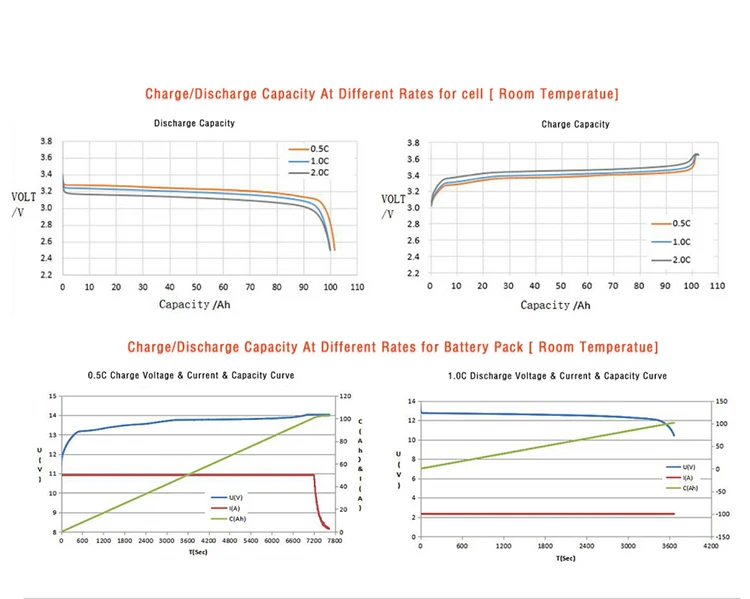

Cell Charts Characteristic Curve
